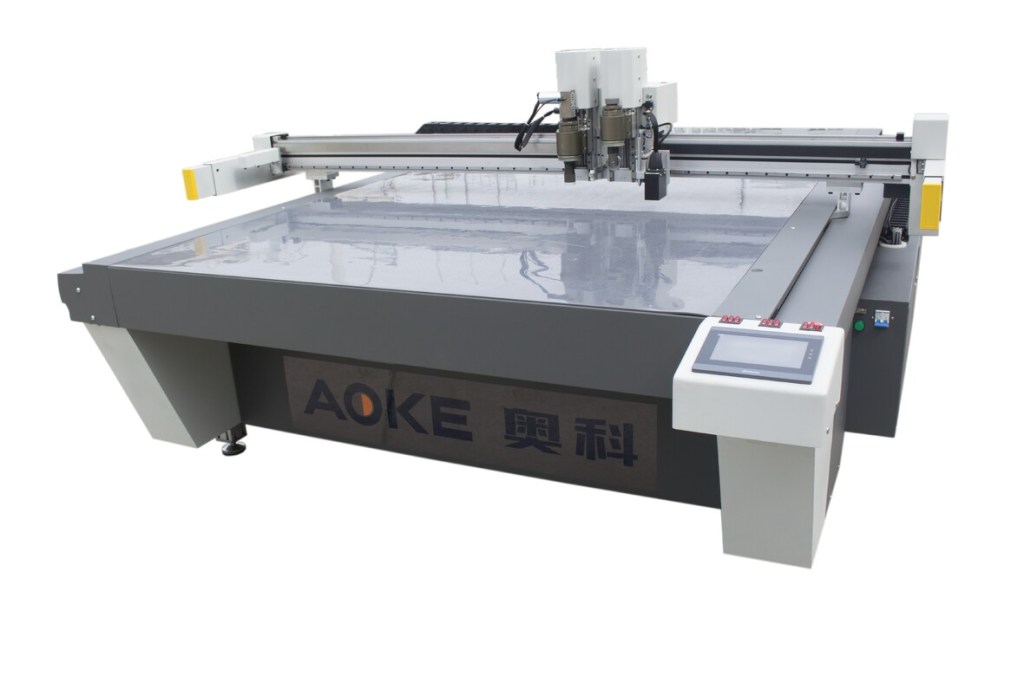

This AKZ20 series high speed digital flatbed cutter is a newly developed cutting system based on the Aviation aluminum, aiming at the industries like packaging, printing, advertisement, display, etc. It not only reserves all the virtues of the previous DCZ7X cutting system, but also have faster speed and better outlook. It has two independent modules, configured with versatile tools including oscillating knife, creasing wheel, drag knife, V cutting knife and pen, this high speed cutting system whose maximum cutting depth is 60mm, can be used to cut corrugated paper, honeycomb board, card paper, foam, grey board, KT board, PVC expansion board and other materials. The AKI system makes the machine smarter, just to press the button and then depth of the knife tool will be set automatically. In this way, damaged to the cutting table caused by manual operation error will be avoided. This product also called box sample maker, sample maker, AD cutting machine, Display cutting machine, foam cutting machine, smart digital cutting system and so on, according to the different cutting material and application. This product can be used for sample making and small scale production in the industries of packaging, printing, advertisement, etc.
Main features：
1. Our high speed digital flatbed cutter consists of two independent modules and its cutting tools are interchangeable.
2. Table of this digital corrugated board cutter is designed with a new vacuum zone and adopts Aviation aluminum. This new design endows the cutting machine with stronger suction capacity faster speed and lower noise.
3. Automatic tool setting system makes tool replacement more convenient. After replacing the knife tools, you just need to press the button and then depth of the knife tool will be set automatically. In this way, damaged to the cutting table caused by manual operation error will be avoided.

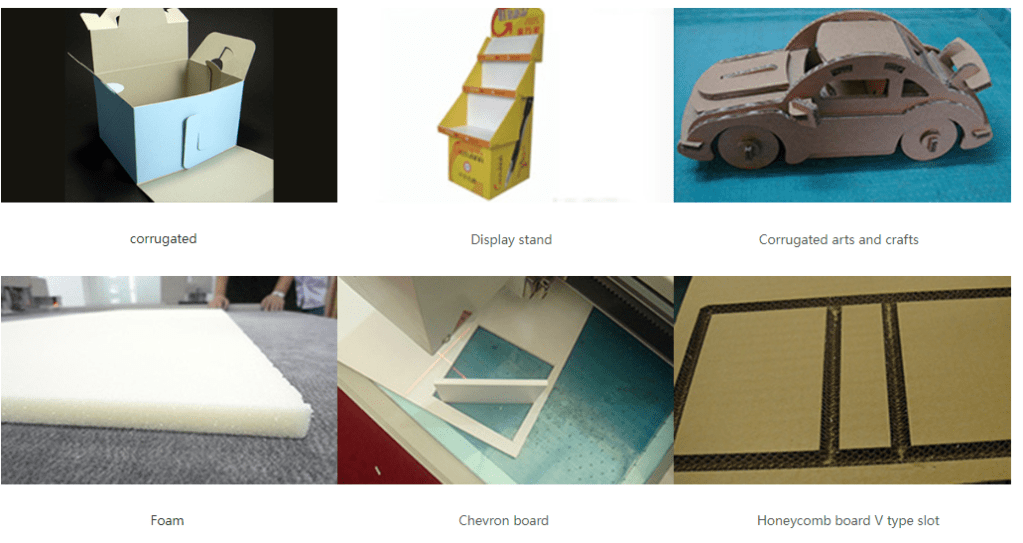

Cutting materials:
Corrugated paper, honeycomb board, card paper, foam, grey board, Advertising cloth, flag cloth, canvas, KT board, PVC expansion sheet etc.
Application:
This machine can be used to make samples, cut and small production in the industries such as Ads, Display, Packaging, Graphic and so on.
Technical parameter:
| Mode | AKZ20-2516 | AKZ20-1713 | AKZ20-1310 |
| Effective cutting area | 2500*1600mm | 1700*1300mm | 1300*1000 |
| Configuration | Oscillating knife,pen,creasing tool,drag knife,foam tool, v cut tool | ||
| Smallest cutting diameter | 6mm | ||
| Max aped | 1800mm/s | ||
| Driver | Servo | ||
| Precision | ≤0.1mm | ||
| Maximum cutting thickness | 30mm | ||
| Data form | HPGL,DXF,PDF | ||
| Voltage | 220v±10% 50Hz | ||
| Data port | parallel port，serial port，USB port | ||
| Option | AOKE CCD vision system, feeding and blanking system | ||
| Occupy dimension(L*W*H) | 3500*2460*1400mm | 2700*2160*1400mm | 2300*1860*1400mm |
| Note | Other size can be customized. | ||
