High-speed carton color box cutting and proofing machine AKZ20 series

Key Features:

(1) Brand-new aluminum-profile structure for ultimate performance
(2) Independent multi-zone vacuum table for stronger & flatter suction
(3) Dual independent modular tool heads with freely interchangeable cutters
(4) Auto tool-height sensor for quick cutter replacement
(5) Cuts up to 60 mm thick, covering all mainstream materials

Product Introduction

The AKZ20 series flatbed cutting & prototyping machine is newly developed by AOKE for packaging, printing, advertising and display industries. Adopting independent modular design with excellent expandability, it realizes truly interchangeable tool heads. Supplied with oscillating knife, pen, creasing wheel, drag knife, foam knife, V-groove knife, etc., it cuts up to 60 mm thick and handles corrugate, honeycomb board, cardboard, foam, greyboard, photo paper, banner fabric, canvas, KT board, PVC foam board, etc. The brand-new platform uses an aluminum-profile frame and a re-engineered multi-zone vacuum table for stronger suction and rock-solid mechanical stability. Depending on material and application, it is also called carton plotter, sample maker, cutting table, advertising cutter, display cutter, foam cutter, intelligent cutting-prototyping system, etc. Suitable for cutting, prototyping and short-run production in packaging, color printing, advertising and display sectors.

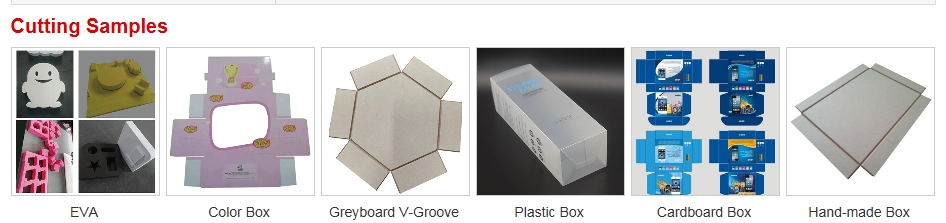

Main Cutting Materials

Corrugated board, honeycomb board, cardboard, foam, greyboard, photo paper, banner fabric, canvas, KT board, PVC foam board, etc.

Main Application Industries

Prototyping, cutting and short-run production for advertising, display, packaging and color-printing sectors.

Technical Parameters

Model	AKZ202516	AKZ201713	AKZ201310
Effective Cutting Area	2500 × 1600 mm	1700 × 1300 mm	1300 × 1000 mm
Configuration	Oscillating knife, pen, creasing wheel, drag knife, foam knife, V-groove knife
Maximum Speed	1800 mm/s
Minimum Cutting Circle Radius	1 mm
Maximum Cutting Thickness	60 mm
Driver	Servo
Accuracy	≤0.1 mm
Data Format	HPGL, DXF, PDF
Voltage	220 V ±10 %, 50 Hz
Data Interface	Parallel, serial, USB
Options	AOKE CCD vision positioning system
Footprint (L × W × H)	3500 × 2460 × 1280 mm	2700 × 2160 × 1280 mm	2300 × 1860 × 1280 mm
Remarks	Other sizes available on request
