Main features:
(1) Stable performance and low failure rate
(2) Steel belt transmission, accuracy guaranteed
(3) Low maintenance cost and easy operation
(4) Accurate positioning
Product introduction
DCH30 series positioning carton machine is developed based on DCH10. It not only retains all the functions of DCH10, but also adds the laser positioning function, so it can be well applied to the cutting of pre-printed PVC board and cardboard. The laser light positioning function can match the pre-printed marking points on the printed matter to achieve precise positioning and cutting. This model has the advantages of high positioning accuracy and easy operation. It can not only save a large number of knife mold costs, but also can be easily modified, and the sample can be produced quickly. Depending on the cutting material and application industry, it can also be called carton proofing machine, plastic box proofing machine, proofing machine, advertising cutting machine, etc.

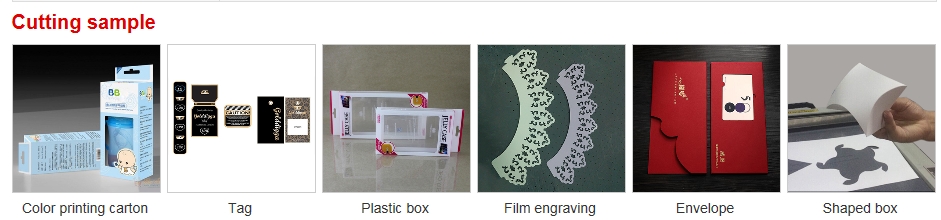

Major cutting materials
Cardboard, PVC / PET film, stickers, greeting cards, tags, etc.
Technical parameters
| Model | DCH300906 | DCH301209 | DCH301512 |
| Effective processing area | 900*600mm | 1200*900mm | 1500*1200mm |
| Configuration | Pen, special knife, pressure roller, laser light positioning | ||
| Maximum speed | 1000mm/s | ||
| Adsorption method | vacuum | ||
| driver | Stepper motor | ||
| Transmission material | Imported steel belt | ||
| Cutting method | Strokes, half-knife, full-knife | ||
| Cutting thickness | 0.5-2mm | ||
| Cutting material | Red cardboard, plastic board, white cardboard, kraft paper, thin PVC | ||
| Accuracy | ≤0.1mm | ||
| Instruction system | International standards: HPGL or DXF | ||
| Working hours and characteristics | Continuous operation, computer operation and cutting at the same time, fast data transmission at one time | ||
| Transmission port | International Standard: Parallel / Serial | ||
| Voltage | 220v±10% 50Hz | ||
| Fuse Specifications | 5A | ||
| Occupied size (length * width * height) | 1335*1065*1080mm | 1635*1365*1080mm | 1935*1665*1080mm |
| Remark | Other sizes can be customized | ||
