Key Features: (1) Stable performance and low failure rate
(2) Steel belt transmission, accuracy guaranteed
(3) Low maintenance cost and easy operation
(4) Indentation cutting is completed simultaneously
Product introduction

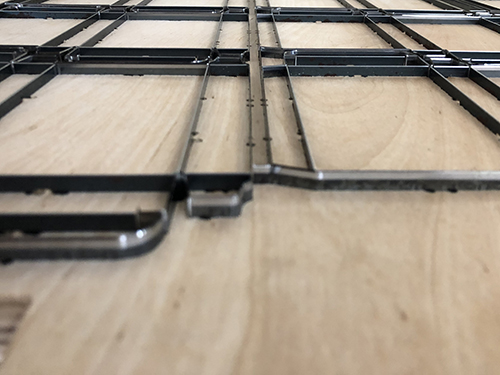

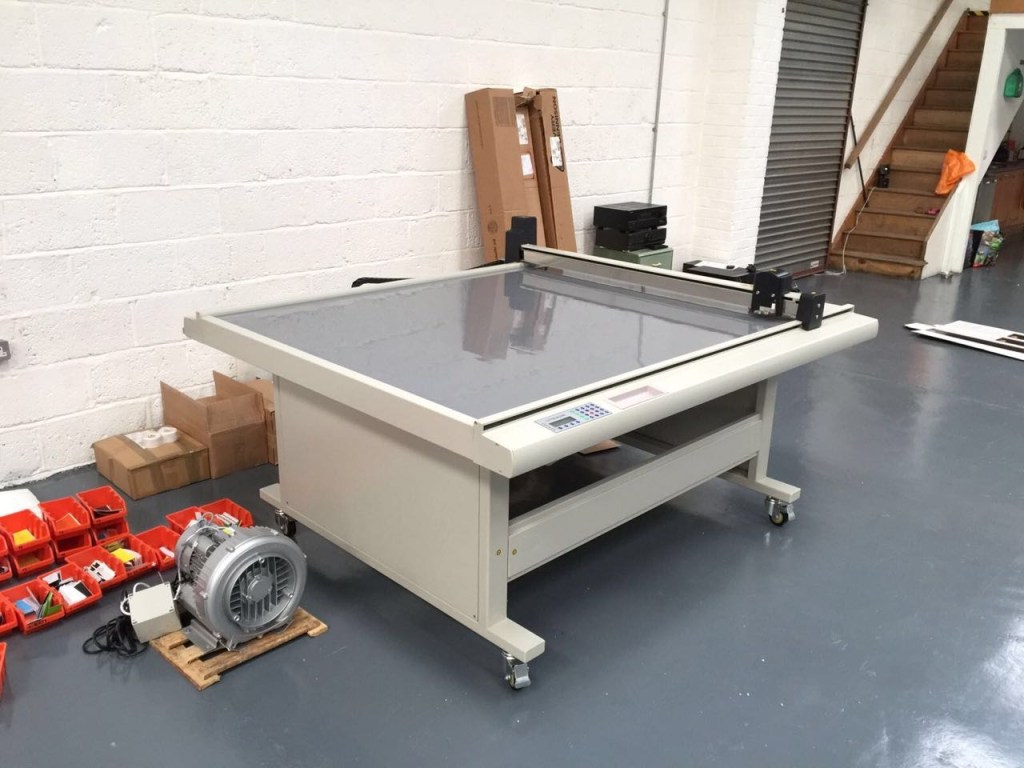

GD series laser knife die flat plotter is a set of cutting, creasing, and drawing functions launched by Aokee very early. It is widely used in the packaging industry for all types of knife die drawing, laser knife drawing, manual knife drawing Sulfur paper drawing and so on. Equipped with special knives, pressure rollers, pen tools, cutting and drawing can be completed at one time. Mainly aimed at the high-precision market demand, it adopts imported steel belt drive, which is widely used in drawing cutting with high precision requirements, and has won the favor of consumers. According to different cutting materials and application industries, it can also be called carton proofing machine, plastic box proofing machine, proofing machine, cutting machine, etc.
Main cutting material
Card paper, PVC / PET film, stickers, greeting cards, tags, etc.
Technical Parameters
| Model | GD1209 | GD1509 | GD1512 |
| Effective processing area | 1200*900mm | 1500*900mm | 1500*1200mm |
| Configuration | Special knife, pen | ||
| Adsorption method | Vacuum adsorption | ||
| Transmission material | Imported steel belt | ||
| Cutting material | Red cardboard, plastic board, white cardboard, kraft paper | ||
| Cutting method | Strokes, half-knife, full-knife | ||
| Cutting thickness | 0.5-2mm | ||
| Minimum cutting circle diameter | Φ2mm | ||
| Accuracy | ± 0.1mm | ||
| Repeat accuracy | ≤0.1mm | ||
| Maximum speed | 1000mm/s | ||
| Working hours and characteristics | Continuous operation, computer operation and cutting at the same time, fast data transmission at one time | ||
| Instruction system | International standard: HPGL or DXF, compatible with any CAD software | ||
| Driver | Stepper motor | ||
| Knife and pen type | Knife: special tungsten steel knife / pen: ordinary signature pen, water-based ballpoint pen, oil-based ballpoint pen | ||
| Main structure | Cutting platform, machine head, transmission system, control cabinet, control microcomputer, rack, vacuum pump | ||
| Operating Voltage | AC 220V 50HZ220V±10% 50Hz，Local voltage and current can be selected according to the area of use | ||
| Fuse Specifications | 5A | ||
| Land size (length * width * height） | 1635*1365*1080mm | 1935*1365*1080mm | 1935*1665*1080mm |
| Remark | Other sizes can be customized | ||
